- 2000 Kg Safe Lifting Weight
- Mosque 360 Degree Manual Rotation
- 90 Degree manual Tilt parallel to the ground
- Locking pin at every 90 Degrees
- 4 Telescopic Extension Arms
- Audiovisual Low Vacuum Alarm and dust filter
- Control on the Machine.
TECHNICAL DETAIL
Machine Size;
Arms Closed: 2600 MM X 11700 mm
Arms Open 3700 mm.X 2.400 mm
Suction Cup Diameter: 330 mm
Machine Weight: 185 Kg
Machine Depth: 300 mm
Battery: 12V 9A
Number of suction cups: 4 pieces of 550mm x 350 mm-4 pieces of 350 mm.
12 Volt maintenance-free Vacuum Pump
Not Suitable for Use in Rain
Do not use in high wind weather (+30 km/h)
- Versatile 1200 kg. capacity glass suction cup
- Holds externally curved, internally curved and flat glasses safely
- Rotates the windows 360 degrees vertically
- There is a locking pin at 90 degrees.
- There is a visual and audible low vacuum alarm
- Maintenance-free vacuum motor
- Not suitable for use in rain
- High wind weather + 30 km/h
TECHNICAL DETAIL
Works with 12 Volt battery.
450mm x 150mm. 10 epidyma vacuum pads
Number of suction cups: 20 pieces on two separate arms
550mm. X 350 mm 4 epidyma vacuum pads
Control via machine
Remote control optional
- 1000 Kg Safe Lifting Weight
- 360 Degree Manual Rotation
- 90 degree parallel to the ground
- Locking every 90 Degrees
- 4 Telescopic Extension Arms
- Audio-Visual Low Vacuum Alarm
- Control Via Machine
TECNICAL TABLE
Machine Dimensions;
With Closhed Arms :1.200 X 1.650 mm
With Telescopic Open Arms :2.000 X 2.600 mm
Size of Pads :330 mm Diameter
Machine Weight :107 Kg
Structural Depth :330 mm
Power:12 v 2 Vacuum Pump with 12 v 9A Battery
Number of Suction Cups :8
Not Suitable For Use In The Rain
Not Suitable For Use Extreme Windy Weather (+30km/h)

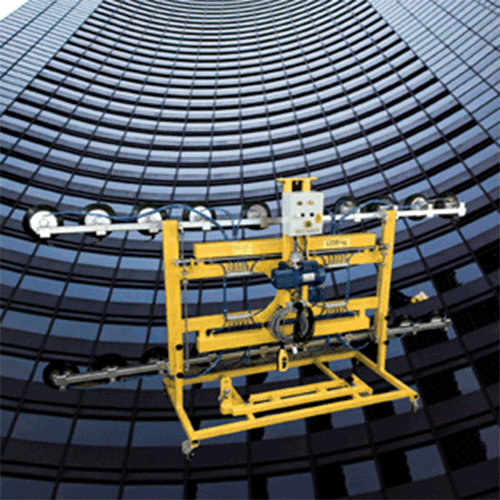

Safe working load : 1200 KG
Manuel Vertical 360° rotating
Every 45° lockable
220V electric vacuum pump or 12V 2 vacuum pumps
Audio and visual low vacuum alert
Pad arms rotate for handling curved glasses
Not Suitable for use in the rain
TECHNICAL DETAIL
Vacuum system: 1 220V electric vacuum pump or 12V 2 vacuum pumps
Suction cup type: Diameter 240mm bellows suction cups.
Number of suction cups : 20
Loading Capacity: 1200 KG
Weight of lifter: Approx 420 KG
Structral Depth: 500 mm
Power Suppply: 220V or 12V battery
Control : On Panel and cable remote control ( infrared remote control opsional )
- 800 Kg Safe Working Load
- 360 Degree Manual Rotation
- 90 Degree Manuel Tilt
- 4 Telescopic Arms
- Audiovisual Low Vacuum Alert
- Automatic Locking Every 90 Degree
- Control on Panel
TECNICAL TABLE
Machine Dimensions;
With Closhed Arms :1.200 X 1.650 mm
With Telescopic Open Arms :2.000 X 2.600 mm
Size of Pads :330 mm Diameter
Machine Weight :107 Kg
Structural Depth :300 mm
Power:12 v 2 Vacuum Pump with 12 v 9A Battery
Number of Suction Cups :6
Maximum Load Capacity :2 Pads 265 Kg
:6 Pads 800 Kg
Not Suitable For Use In The Rain
Not Suitable For Use Extreme Windy Weather (+30km/h)

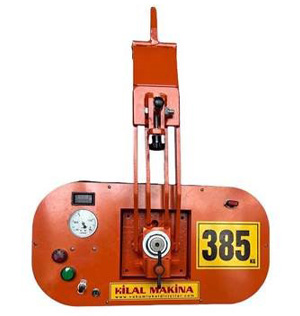

385 Kg Safe Lifting Weight
360 Degree Manual Rotation of Glass
90 degree manual tilting of glass
Auto Locking Every 90 Degrees
Audiovisual Low Vacuum Alarm
Control Via Machine
TECHNICAL DETAIL
Glass Holding Size: 400 mm x 600 mm
Vantuz ölçüsü : 300 mm x 500 mm
Machine Weight: 32 kg.
Machine Depth: 300 mm
Battery: 12 Volt 9 Ampere.
Maximum Load Capacity: 385 kg.
Not Suitable for Use in Rain
Do not sell in high wind weather (+30 km/h)

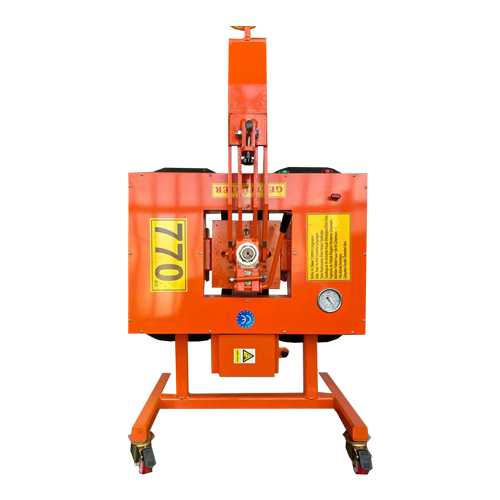

- 770 Kg Safe Lifting Weight
- 360 Degree Manual Rotation
- 90 Degree Manual Tilt
- Auto Locking Every 90 Degrees
- Audiovisual Low Vacuum Alarm
- Control on the Machine
TECHNICAL DETAIL
Machine Size glass holding size 700mm x 600 mm
Suction Cup Diameter: 330 mm
Machine Weight: 55 Kg
Machine Depth: 300 mm
Battery: 12V 9A
Number of Suction Cups: 2
Maximum Load Capacity 770 kg.
12 Volt maintenance-free Vacuum Pump
Not Suitable for Use in Rain
Do not use in high wind weather (+30 km/h)

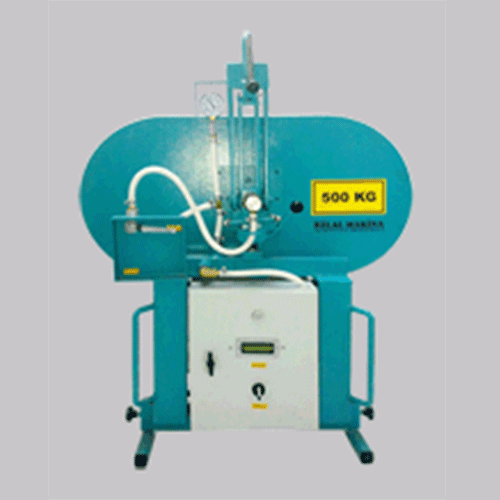

Safe working load: 500 KG
Manuel tilting, vertical and horizontal loading capacity.
Vertical manuel 360° rotation.
Every 45o lockable.
Maintenence-free vacuum pump.
On-board 12V rechargeable battery (battery can remove easily.)
Audio-visual low vacuum alert.
Not Suitable for use in the rain
TECHNICAL DETAIL
Vacuum system: 12V 1 vacuum pumps
Suction cup type and area: Central cup 800x450mm oval 316.462mm2 suction cup area.
Number of suction cups: 1 big oval suction cup.
Loading Capacity: Vertical 500 KG
Weight of lifter: Approx 54 KG
Structral Depth: Approx 220mm
Power Suppply: 12V rechargeable battery and 220V charger.
Control: On Panel

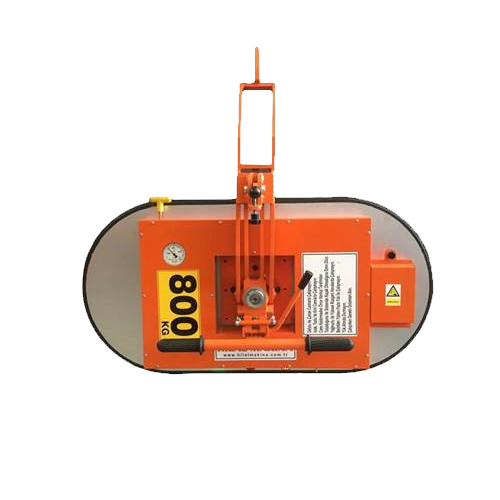

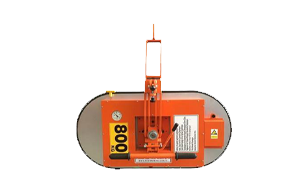

Safe working load : 800 KG
Manuel tilting, vertical and horizontal
loading capacity.
Vertical manuel 360° rotation.
Every 45o lockable
Maintenence-free vacuum pump.
On-board 12V rechargeable battery (battery can remove easily.)
Audio visual low vacuum alert.
Not Suitable for use in the rain.
Vacuum system: 12V 2 vacuum pumps
Suction cup type and area : Central cup 800x450mm oval 316.462mm2 suction cup area.
Arms 400x300mm oval 100.650mm2 1 arm suction cup area.
Central cup and 2 extension arm total suction cup are 512.762mm2.
Loading Capacity: Vertical 800 KG
Weight of lifter: Approx 74 KG
Structral Depth: Approx 220mm
Power Suppply: 12V rechargeable battery and 220V charger.
Control: On Panel

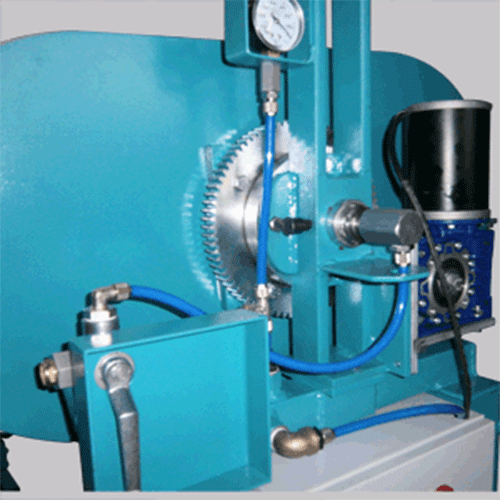

Safe working load : 500 KG
Vertical manuel 360° motor rotate system.
Powered 360° continuous rotation and stop.
Maintenence-free vacuum pump.
On-board 12V rechargeable battery (battery can remove easily.)
Audio-visual low vacuum alert.
Not Suitable for use in the rain.
Vacuum system: 12V 2 vacuum pumps
Suction cup type and area: Central cup 800x450mm oval 316.462mm2 suction cup area.
Number of suction cups: 1 big oval suction cup.
Loading Capacity: Vertical 500 KG
Weight of lifter: Approx 84 KG
Structral Depth: Approx 320mm
Power Suppply: 12V rechargeable battery and 220V charger.
Control: On Panel
Safe glass carrying capacity 300 kg
Ability to manually rotate the glass 365 degrees
Extendable telescopic suction cup system
Audible low vacuum warning
TECHNICAL DETAIL
Carrying capacity : 300 kg.
MOQ of suction cups : 4 pcs
Vacuum system: Maintenance-Free Pump
Machine weight : 30 kg.
Machine depth : 200 mm.
Energy source : Motion driven
Control : Manual

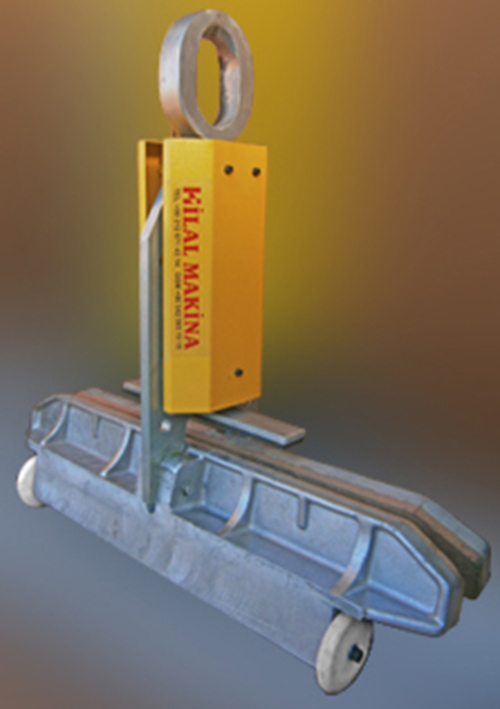

PRODUCT INFORMATION
Single sheet lifting only.
RATES FOR: 1000 KG.
Single sheet lifting only.
RATES FOR: 300 KG.
Güvenli cam taşıma kapasitesi 200 kg.
Dikey olarak 90 derece dönme kabiliyeti
pnömatik asansörlü (sarsılmadan kaldırma
indirme sistemi )
Havaii özel çift hat ile kolay hareket ettirebilme
özelliği manuel
Yatay camı dikey dikey camı yatay pozisyona
getirebilme
Uzayabilen teleskopik vantuz sistemi
Elektrik enerjisinden bağımsız pnömatik sistem
Vantuz adedi: 4 Adet
Vakum sistemi: Pnömatik
Taşıma kapasitesi: 200 kg.
Makine toplam ağırlığı: 100 kg .
Enerji kaynağı: pnömatik
Kumanda: Makine panosu üzerinden

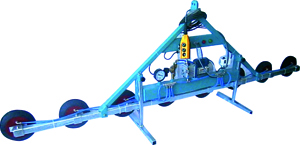

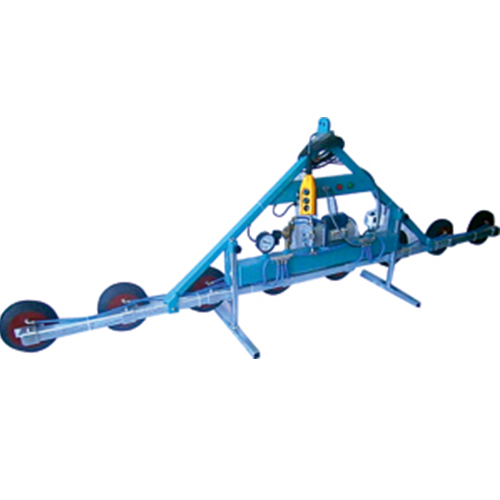

Güvenli cam taşıma kapasitesi 600 kg.
Vakumlama ve boşaltma lambaları
Uzaktan kumanda sistemi
Yağmurda kullanıma uygun değildir .
Enerji kaynağı : 220 volt
Vakum sistemi : 1 adet yağlı vakum pompası
Vantuz adedi : Tek sıra 8 adet
Taşıma kapasitesi : 600 kg.
Makinenin derinliği : 300 mm.
Kumanda : Uzaktan kumanda radyo frekans opsiyonel
-Güvenli cam kaldırma kapasitesi 300 KG
-Dikey olarak 360 derece dönme, istediğiniz açıda durma kabiliyeti
-Hassas olarak yataydan dikeye,dikeyden yataya getirme özelliği
-Uzayabilir teleskopik kollar
Vantuz adedi : 4 adet 280 mm
Vakum sistemi : Yağlı 220 volt elektrik motoru(kuru motor opsiyonel)
Sesli ve ışıklı düşük vakum alarmı
Vantuz cam tutmaya hazır ışıklı ikazı
Vantuz cam montajına hazır ışıklı ikazı
Vakum göstergesi
Vakumostat
Makine ağırlığı :100 Kg.
Kumanda :Makine üzerinden

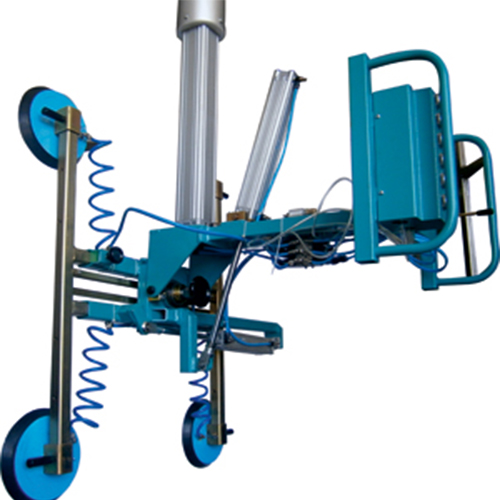

Güvenli cam kaldırma kapasitesi 200 kg
Düşey ağırlık noktası ayarlama vidasıyla vinçlerle rahat kullanım
Uzayabilen teleskopik kollar
Kollarda cam bombesini her türlü açıya kendi ayarlayabilen sistem
90 derece yataydan dikeye,dikeyden yataya getirebilme (opsiyonel)
90 derece veya 360 derece dönme hareketi motorlu veya manuel olarak (opsiyonel)
220 volt elektrikli veya 12 volt bataryalı
sistem
Vantuz adedi :4 adet
Kumanda pano üzerinden
Sesli ve ışıklı düşük vakum alarmı
Vantuz cam tutmaya hazır ışıklı ikazı
Vantuz cam montajına hazır ışıklı ikazı
Vakum göstergesi
Vakumostat
Makine ağırlığı 40 kg
Vinç sistemi dışında kullanım için tekerlekli montaj robotuna adapte
edilebilir.
- 600 Kg Safe Working Load
- 360 Degree Manual Rotation
- 90 Degree Manual Tilt
- 4 Telescopic Arms
- Audovisual Low Vacuum Alert
- Automatic Locking Every 90 Degree
- Control On Panel
Machine Dimensions;
With Closhed Arms :1.000 X 1.350 mm
With Telescopic Open Arms :1.450 X 2.005 mm
Size Of Pads :330 mm Diameter
Machine Weight : 85 Kg
Structural Depth :300 mm
Power :12 V 2 Vacuum Pump with 12 V 9 A Battery
Number Of Suction Cups : 5
Not Suitable For Use In The Rain
Not Suitable For Use Extreme Windy Weather (+30km/h)
